Control unit for gates 24V

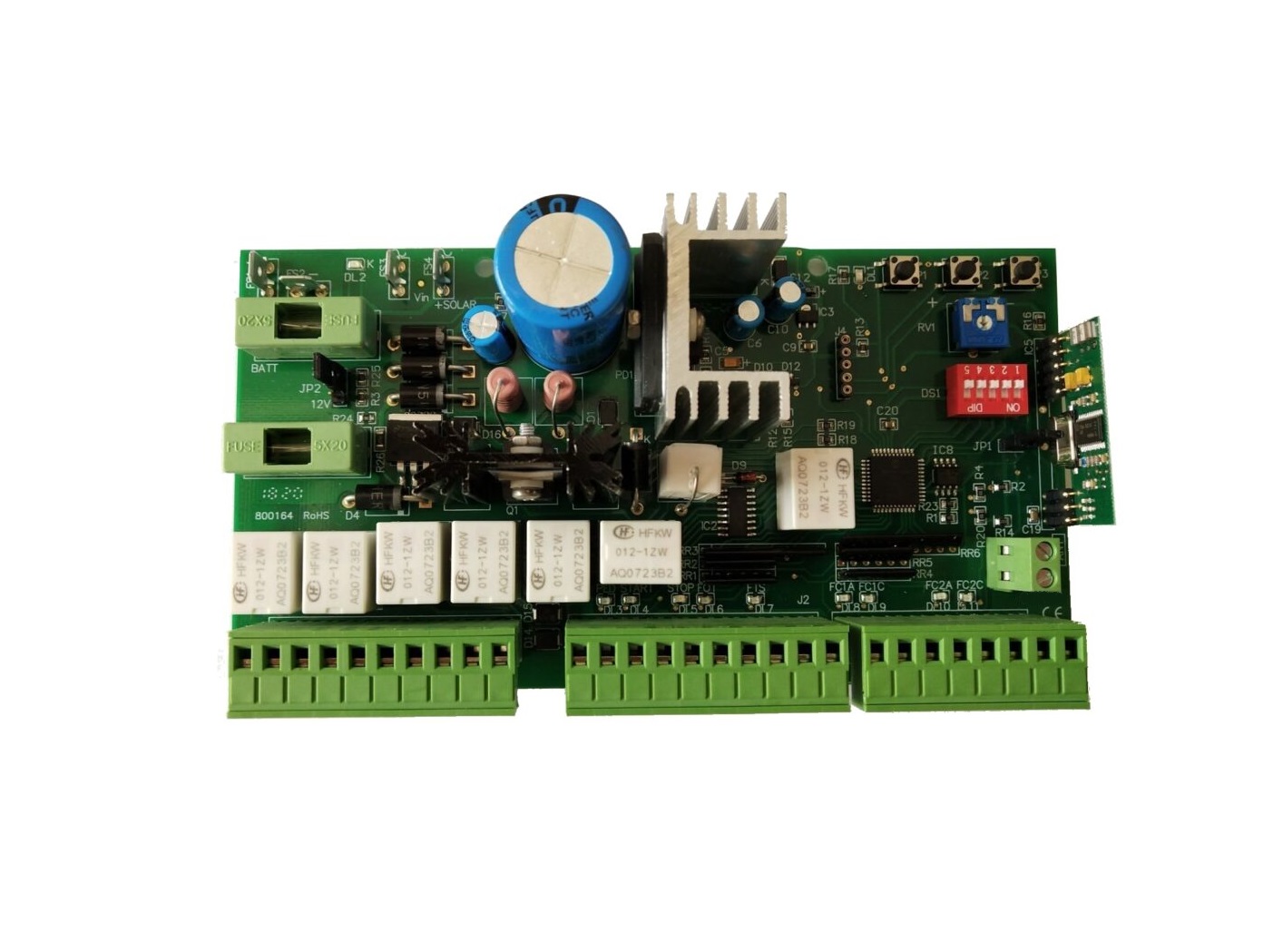

CBL24.UM
Discover the features of the most complete gate control unit on the market
The CBL24.UM is a universal electronic control unit designed for automatic gates powered by 24VDC with one or two motors. Suitable for residential and condominium installations, it ensures high performance, safety and flexible configuration.
It features a 2-channel radio receiver with memory for up to 100 codes and supports both 433.92 MHz and 868.35 MHz frequencies. Safety functions include photocells, photostop, safety edges and amperometric obstacle detection.
The Soft Stop function progressively slows down the gate leaves at the end of travel for smoother and quieter operation. An optional backup battery can also be connected to maintain operation during power outages.
Technical specifications
General data
- Dimensions: 170 × 90 × 46 mm
- Weight: 0.26 kg
- Operating temperature: 0 to +60°C
Power supply
- Main supply: 230Vac ±10%
- Motor supply: 24Vdc
- Maximum motor power: 40W per motor
- Battery charger: 0.1 A
Outputs
- LED flashing light: 12Vdc – 2W max
- Gate open indicator: 12Vdc – 1W max
- Electric lock: 12Vac – 15W max
- Accessories: 12Vdc – 3W max
Radio
- Frequency: 433.92 / 868.35 MHz
- Memory: up to 100 codes
Functions
- 1 or 2 motor management
- Automatic closing
- Soft Stop
- Amperometric sensor
- Pedestrian opening
- Backup battery compatible
