Control unit for gates 24V
CBL24.1M
Discover the features of the most complete gate control unit on the market
The CBL24.1M is a professional electronic control unit designed for sliding gate automation, compatible with one 24Vdc motor up to 80W.
The board provides complete management of the main operating logics, including step-by-step mode, automatic closing, and condominium logic. The Soft Stop function ensures progressive slowdown at the end of travel, reducing mechanical impact and improving both safety and system durability.
The system integrates a radio receiver with storage capacity for up to 100 codes, allowing gate opening control via remote control. The control unit also features an amperometric sensor that detects obstacles during gate movement, automatically stopping or reversing the motion to ensure greater safety.
Dedicated inputs are available for start, photocells, opening and closing limit switches, as well as outputs for flashing light and motor control. The RV1 trimmer allows adjustment of the amperometric sensor intervention threshold during high-speed movement.
Thanks to simplified programming of working and pause times, the CBL24.1M is a reliable and versatile solution for residential and condominium installations.
Technical Specifications
Power Supply and Performance
- Main power supply: 230Vac ±10%
- Motor supply: 24Vdc
- Maximum motor power: 80W
- Standby power consumption: approx. 1 W
- Operating temperature: 0°C to +60°C
- Motor working time programming: max 120 seconds
- Pause time programming: max 300 seconds
- Receiving frequency: 433.92 MHz / 868.35 MHz
Accessory Outputs
- Flashing light: 24Vdc – 3W max
- Accessory power supply: 12Vdc – 3W max
Dimensions and Structure
- Dimensions: 170 x 70 x 46 mm
- Weight: 0.2 Kg
Main Functions
- Management of 1 motor for sliding gate
- Soft Stop slowdown at end of travel
- Programmable automatic closing
- Step-by-step logic
- Condominium logic
- Anti-obstacle amperometric sensor
- Sensitivity adjustment via trimmer
- Integrated radio receiver
- Storage for up to 100 remote controls
- Solar panel compatibility via JP2 jumper
Control Inputs
- Start
- Photocell
- Opening limit switch
- Closing limit switch
Domotime Quality
DOMOTIME was founded in 2005 by people specialized in the gate automation sector. Today it is a leader in the sector of supplying racks of any type and size for automatic gates.
For some years now it has also offered other products in the sector in its catalogue, doing a lot pay particular attention to their quality.
For our customers we select electronic devices, control units, flashing lights and much more, in order to offer a complete service in the world of gate automation and domestic and industrial access security.
Ours is a close-knit work team on which our partners can count, and is able to support technical choices and offer the customer the best solution based on the specifications necessity.
Domotime Quality appears on the vast majority of products in the catalogue, however every product that Domotime offers is tested and studied in depth, to guarantee maximum reliability.
Prodotti Correlati
-
24v
CBL24.UM
The CBL24.UM is a universal control board for swing or sliding gates with 1 or 2 motors at 24VDC. It provides advanced safety management, motor soft stop and an integrated radio receiver.
-
24v

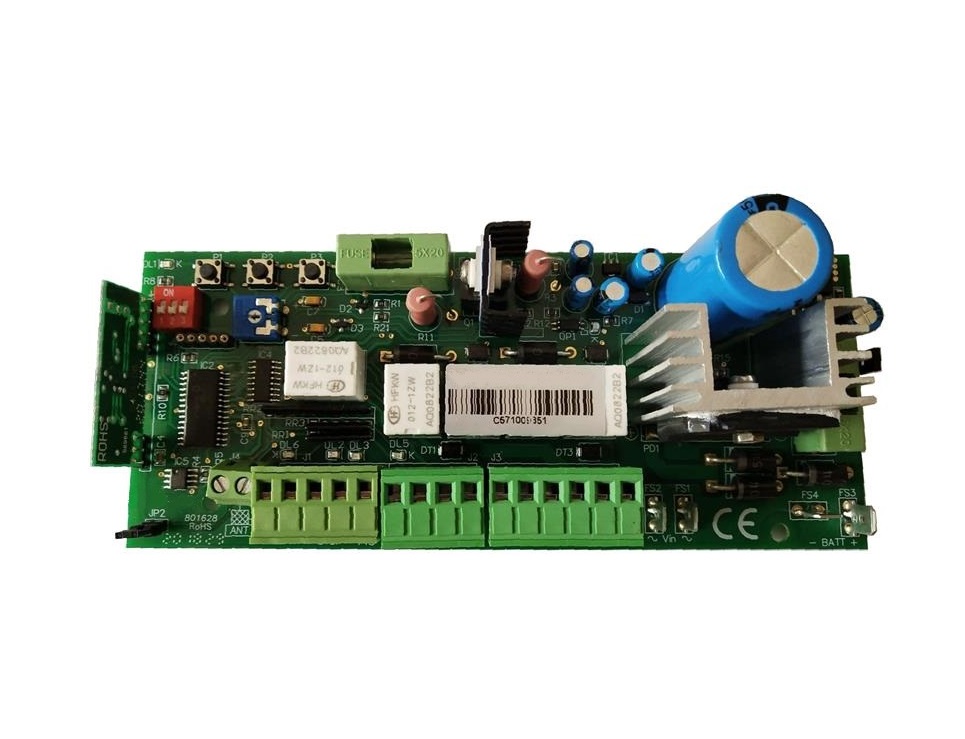

CBL24.2M
