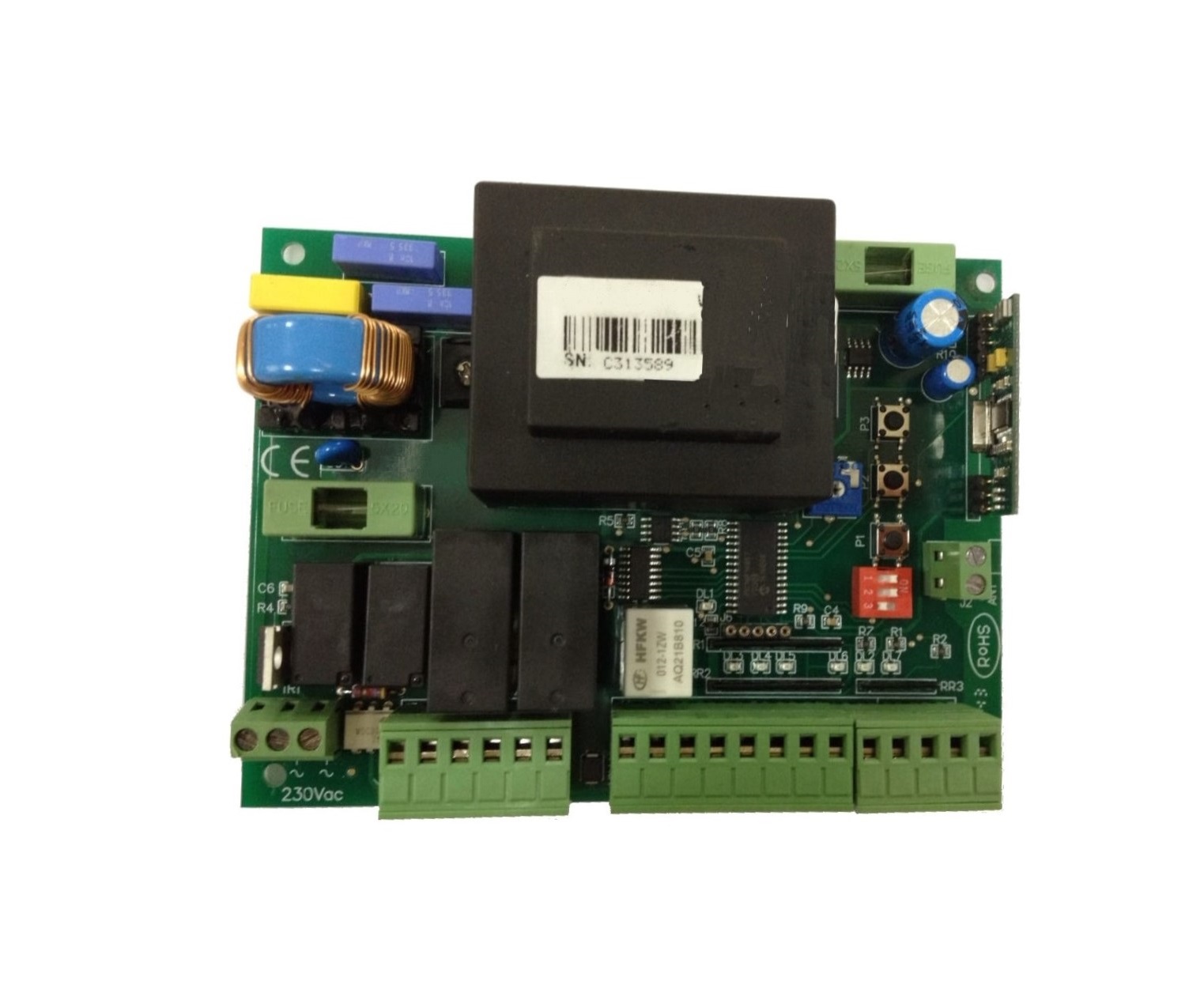

Control unit for gates 230 V
CBL230.1MS
Discover the features of the most complete gate control unit on the market
The CBL230.1MS is a professional electronic control unit designed for sliding gate automation, compatible with one single-phase 230Vac asynchronous motor up to 1 HP.
The board provides complete management of the main operating logics, including step-by-step mode, automatic closing, condominium logic, and immediate closing through photocells. The Soft Stop function ensures progressive slowdown at the end of travel, reducing mechanical impact and improving both safety and system durability.
The system integrates a 3-channel radio receiver with memory for up to 100 codes, allowing full opening, pedestrian opening, and courtesy light activation. The control unit also supports 8k2 resistive safety edges or N.C. contact safety edges, automatically recognized at startup.
Dedicated inputs are available for start, stop, photocells, photostop, safety edges, and opening/closing limit switches, as well as outputs for flashing light, courtesy light, and electric lock.
Thanks to motor torque adjustment via trimmer and simplified working time programming, the CBL230.1MS is a reliable and versatile solution for residential and condominium installations.
Technical Specifications
Power Supply and Performance
- Main power supply: 230Vac ±10%
- Motor power supply: 230Vac single-phase, up to 1 HP max
- Standby power consumption: approx. 1 W
- Operating temperature: 0°C to +60°C
- Pause time adjustment: from 1 to 300 seconds
Accessory Outputs
- Flashing light: 230Vac – 40 W max
- Courtesy light: 230Vac – 100 W max
- Electric lock: 12Vac – 15 W max
- Accessory power supply: 24Vac – 3 W max
Dimensions and Structure
- Dimensions: 103 x 138 x 45 mm
- Weight: 0.46 Kg
Main Functions
- Management of 1 motor for sliding gate
- Pedestrian opening via remote control
- Soft Stop slowdown at end of travel
- Programmable automatic closing
- Step-by-step logic
- Condominium logic
- Immediate closing through photocells
- 8k2 and N.C. safety edge management
- Motor torque adjustment via trimmer
- Integrated 3-channel radio receiver
- Storage for up to 100 remote controls
Control Inputs
- Start
- Stop
- Photocell
- Photostop
- Safety edge
- Opening limit switch
- Closing limit switch
Domotime Quality
DOMOTIME was founded in 2005 by people specialized in the gate automation sector. Today it is a leader in the sector of supplying racks of any type and size for automatic gates.
For some years now it has also offered other products in the sector in its catalogue, doing a lot pay particular attention to their quality.
For our customers we select electronic devices, control units, flashing lights and much more, in order to offer a complete service in the world of gate automation and domestic and industrial access security.
Ours is a close-knit work team on which our partners can count, and is able to support technical choices and offer the customer the best solution based on the specifications necessity.
Domotime Quality appears on the vast majority of products in the catalogue, however every product that Domotime offers is tested and studied in depth, to guarantee maximum reliability.
Prodotti Correlati
-
230vCBL230.2M
The CBL230.2M electronic control unit manages swing gates with 1 or 2 single-phase 230Vac motors. It includes Soft Stop slowdown, automatic closing, condominium logic, and a 3-channel radio receiver for safe and efficient automation.
-

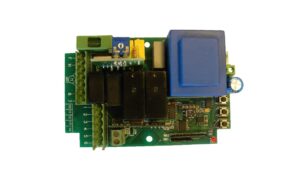

230vCBL230.1MES
