Control unit for gates 230 V
CBL230.1MS
Discover the features of the most complete gate control unit on the market

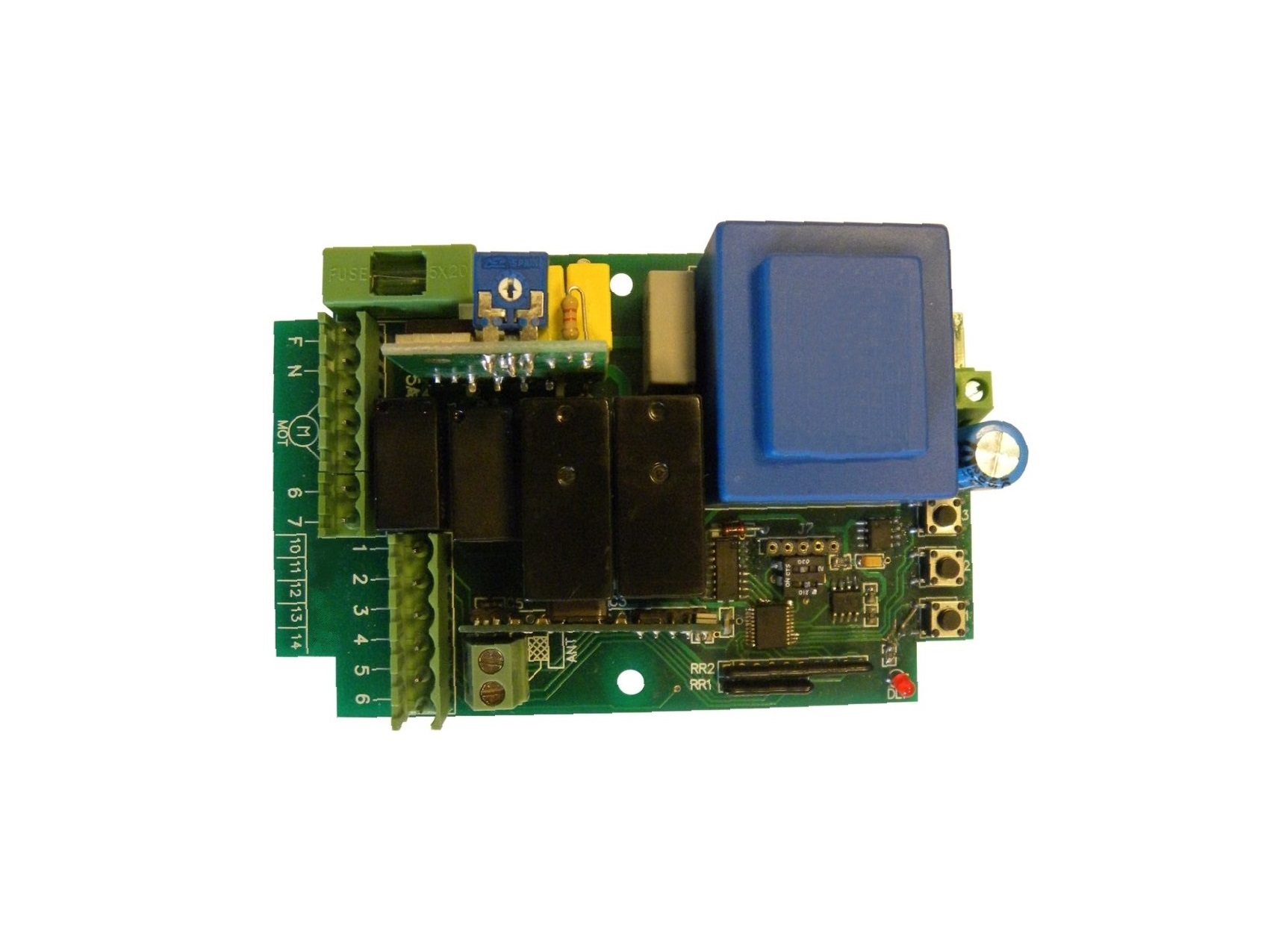

The CBL230.1MES electronic control unit is designed for managing sliding gate automation systems powered at 230Vac. Developed for professional installers, it combines ease of use with advanced functionality to ensure long-term reliability and safety.
It includes a built-in radio receiver with memory for up to 100 codes and supports fixed code, rolling code, and secret key remote controls. The system offers flexible operation modes, including step-by-step, automatic closing, and condominium logic.
Key safety and convenience features include photocell management during closing, pre-warning flashing light, and timed courtesy light. In case of power failure, the unit ensures a smart restart behavior.
Programming is simple via dedicated buttons and LED indicators, allowing easy setup of working time, pause time, and remote controls.
Technical specifications
General data
- Dimensions: 88 x 127 x 58 mm
- Weight: 0.4 kg
- Operating temperature: 0 to +60 °C
Power supply
- Main supply: 230Vac ±10%
- Motor: 230Vac single-phase, max 1HP
- Flashing light: 230Vac max 20W
- Courtesy light: 230Vac max 20W
- Photocell: 12Vdc max 1W
Performance
- Adjustable pause time: 1–300 sec
- Motor working time: 1–300 sec
Radio
- Frequency: 433.92 MHz / 868.35 MHz
- Receiver sensitivity: approx. -102 dBm
- Memory capacity: up to 100 codes
Main features
- Operating modes: step-by-step, automatic, condominium
- Photocell safety with reverse during closing
- Stop safety function
- Flashing light with pre-warning
- Timed courtesy light
- Automatic recovery after power failure
Domotime Quality
DOMOTIME was founded in 2005 by people specialized in the gate automation sector. Today it is a leader in the sector of supplying racks of any type and size for automatic gates.
For some years now it has also offered other products in the sector in its catalogue, doing a lot pay particular attention to their quality.
For our customers we select electronic devices, control units, flashing lights and much more, in order to offer a complete service in the world of gate automation and domestic and industrial access security.
Ours is a close-knit work team on which our partners can count, and is able to support technical choices and offer the customer the best solution based on the specifications necessity.
Domotime Quality appears on the vast majority of products in the catalogue, however every product that Domotime offers is tested and studied in depth, to guarantee maximum reliability.
Prodotti Correlati
-

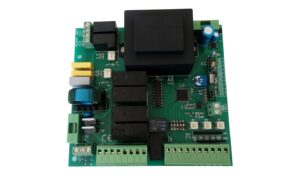

230vCBL230.2M
The CBL230.2M electronic control unit manages swing gates with 1 or 2 single-phase 230Vac motors. It includes Soft Stop slowdown, automatic closing, condominium logic, and a 3-channel radio receiver for safe and efficient automation.
-

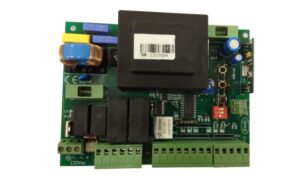

230vCBL230.1MS
