Photocells
Photoelectric cells are an essential component for the safety of any automated system. They detect the presence of obstacles along the path of gates or barriers, halting movement in case of danger and preventing accidents or damage.
Available in various technologies and ranges, our photoelectric cells are suitable for all types of installations, ensuring reliability, accuracy, and compliance with current regulations.
Discover the full range
Filter Products
Type
Power Supply
Range
-
FixedFTX40
Infrared photocells FTX40 – range up to 40 m, 12–24 V AC/DC power supply, compact design, and stable installation for safe automation.
-
FixedFTE15
Outdoor photocell,
discreet and ECONOMIC ,
Power supply: 12 – 24 Vac / dc
Absorption: 30mA.
Operating temperature -25 ° + 55 °
Degree of protection: IP55
Max range 15 mt. -
FixedFTMINI
MINIATURIZED outdoor photocells, synchronized.
The very small size makes them very discreet and elegant.
Power supply: 12 – 24 Vac / dc
Absorption: 60mA.
Dimensions: 26x28x65 .
Operating temperature -20 ° + 60 °
Degree of protection: IP55.
Max range 15 mt. -
FixedFTGIN60
RECESSED photocells,
In synchronized alternation,
double safety relay,
Power supply: 12 – 24 Vac / dc
Absorption: 35mA.
Operating temperature -20 ° + 60 °
Degree of protection: IP55.
Max range 15 mt. -
180FTX180
180 ° ADJUSTABLE outdoor photocells, very elegant.
Power supply: 12 – 24 Vac / dc
Absorption: 15mA(RX)/300uA(TX).
Operating temperature -20 ° + 80 °
Max range 20 mt. -
FixedFTD
The FTD are professional digital photocells with a range of up to 25 meters and IP65 protection rating. Powered by 12–24 V AC/DC. Thanks to configurable jumpers, it is possible to select the address (up to 4 devices without interference), adjust the transmission power (near/medium/far/max), and enable/disable the buzzer.
-
180FTB180
The FTB180 is an outdoor photocell powered by battery, ideal for installations where electrical power is not available. The transmitter operates with 2 AAA 1.5 V batteries (3 V total), while the receiver is powered by 12–24 V DC. It provides a range exceeding 12 m, a very low transmitter current consumption (< 85 µA), and high reliability thanks to the 940 nm beam with an emission angle of ±5°. It features a selectable NO/NC relay output and is perfectly suited for automation and security system applications.
-
FixedFTO40
Outdoor photocell, very listening,
synchronized alternating,
double security relay
Power supply: 12 – 24 VAC / DC
Power consumption: 50mA
Operating temperature -25 ° + 70 °
Protection: IP44
Flow rate: 40 – 200 mt -
180FTL180
FTL180 Outdoor photocell, with flashing light and 180° rotatable. Perfect for difficult installations, maximum reliability. It is possible to connect the internal flashing light to the courtesy light to illuminate the passage in the evening.
-
PhotocellsFTREFL03
Outdoor photocells 180 ° adjustable,
Model REFLEX with polarized reflection light.
Power supply: 12 – 24 VAC / DC
Max capacity 17 mt. -
PhotocellsFTREFL02
Outdoor photocells 180 ° adjustable horizontal and 20th vertical,
Model REFLEX with polarized reflection light.
Power supply: 12 – 24 VAC / DC
Working distance: 21 – 36mA.
Operating temperature -10 ° + 55 °
protection: IP55.
Max capacity 10 mt. -
PhotocellsFTREFL
External photocells
REFLEX model with polarized reflection light.
Power supply: 12 – 24 Vac / dc
Absorption: 21 – 36mA.
Operating temperature -10 ° + 55 °
Degree of protection: IP67.
Max range 15 mt.
You might be interested

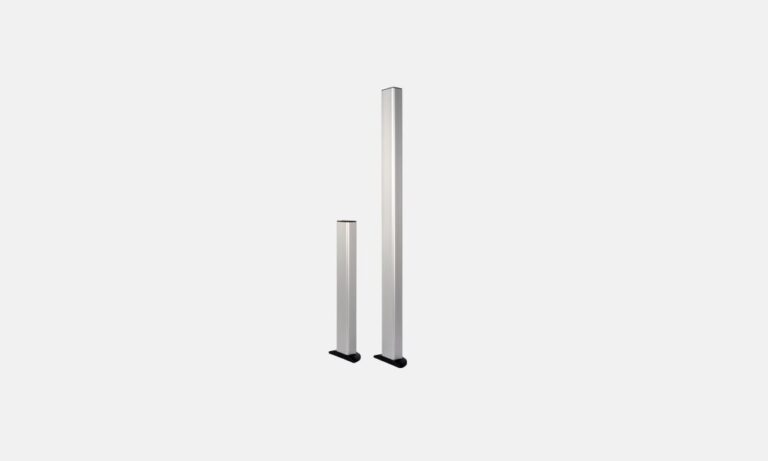

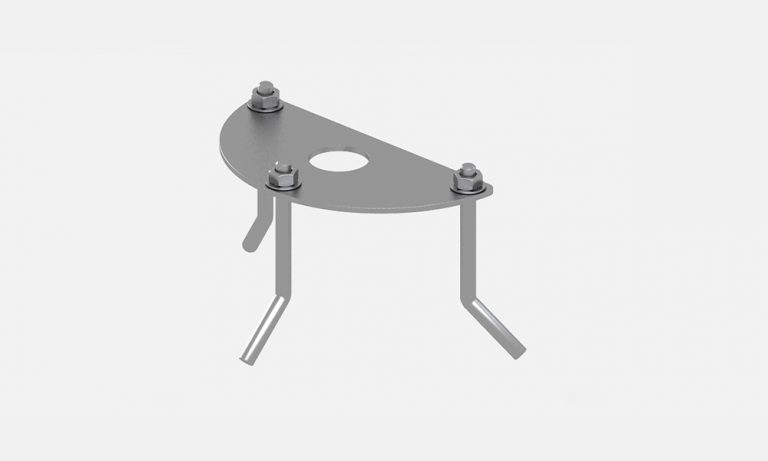

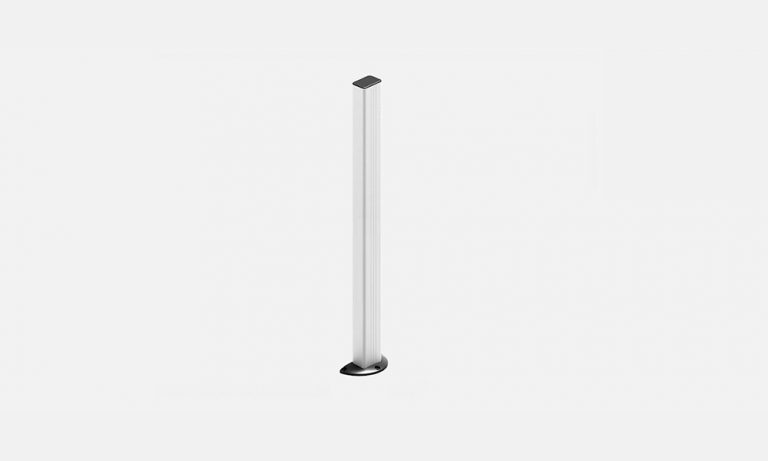

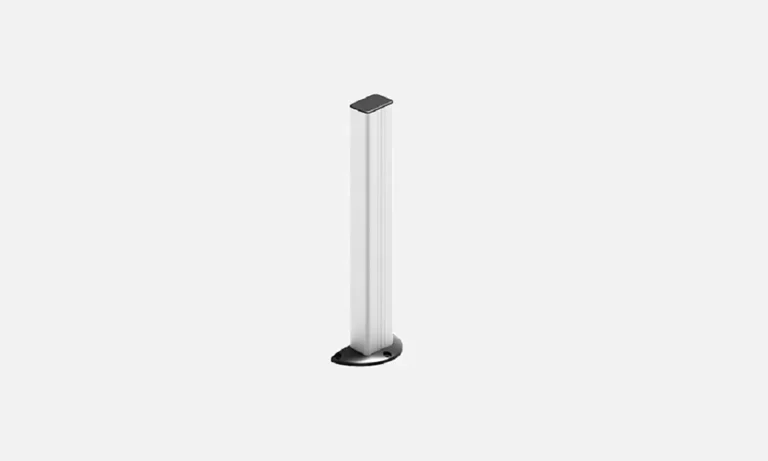

If you are looking for a practical, robust, and ready-to-use solution, discover our selection of posts: you can create neat, reliable, and perfectly functional systems without complications.
